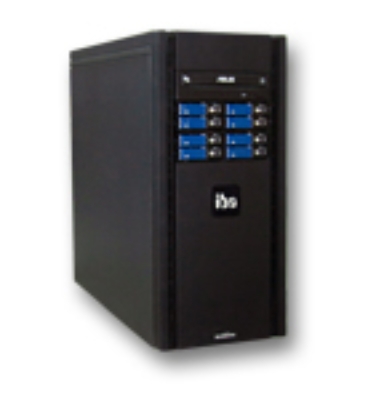

ibaDeskline SAS, XEON E, Win10, SSD

Data Acquisition System Deskline with SSD storage
(HarmonizedCode:84714900, ECCN:4A994B1, LKZ:DE, AG:N)
Manufacturer: iba-ag
SKU: 40.002016

online system - embedded system - SSD - Applications:

  • Machine test and commissioning
  • Data analysis

Technical Data:

  • Manufacturer: iba AG
  • iba-Deskline Case:
  • Power Supply ATX 400W
  • wide range input: AC 90V - 264V
  • wide range input: DC 110V DC - 374V
  • CPU Intel XEON E 2146G, 3.5GHz
  • Industrial Motherboard C246 Chipset and LGA1151 Socket
  • On board Intel UHD-Graphic
  • Max. number of simultaneously useable monitors: 3
  • On board Gigabit Ethernet 2x 10 / 100 / 1000 Mbps
  • On board 7.1 Kanal HD Audio
  • 6 x PCI Express Slots; used for:
    - 1x PCI-Express x16 with SAS-RAID-Controller
    - 1x PCI-Express x16 empty
    - 4x PCI-Express x1 empty
  • 1x PCI empty
  • 32GB DDR4-RAM
  • 1x Drive mounting frame 5,25", for up to 4x SAS 2,5" HDD/SSD
  • 1x 1600GB SAS SSD
  • 1x M.2 (2242/2260/2280) M-Key, supports Intel RST, PCI-ex4 mode SSD
  • 1x M.2 (2230) A-Key, supports WiFi module
  • 8x USB 3.0 (housing backside)
  • 1x USB 2.0 (housing inside / dongle)
  • 2x USB 3.0 (housing top)
  • 2x USB 2.0 (housing top)
  • 1x VGA, 1x HDMI, 1x DP
  • USB keyboard, USB optical mouse
  • Operating System: Windows 10 IoT Enterprise LTSC-2019
  • Dimension: (HxWxD) 460mm x 205mm x 490mm

Remarks:

  • This is a class A product. In a domestic environment this product may cause radio interferences in which case the user may be required to take adequate measures.
  • Enhancement packages on extra costs:
    - Upgrade to RAID1-System
    - Upgrade with NVME-SSD as OS partition
  • Monitor must be ordered separately!
  • iba Plug&Play service (HW and Software purchased with PC installed and tested)
  • If a PCI card shall be used within the existing PCI slot, please contact our support for more information
