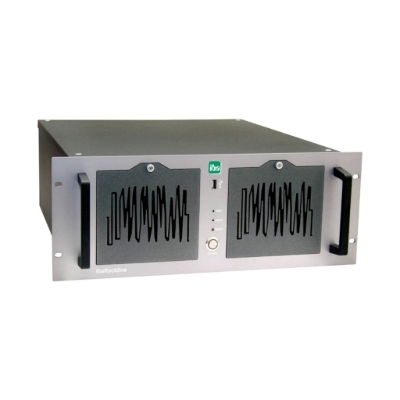

ibaNordic Rackline TFR

Data Acquisition System Rackline
Manufacturer: iba-ag
SKU: BS-000001

ibaRackline SAS, XEON E, Win10 SSD

online system - embedded system - SSD - Applications:

  • Machine test, commissioning, data analysis

Technical Specification:

  • Manufacturer: iba AG
  • 19" rack mount case ibaRackline
  • Power Supply ATX 400W
  • wide range input: AC 90V - 264V
  • wide range input: DC 110V DC - 374V
  • CPU Intel XEON E 2146G, 3.5GHz
  • Industrial Motherboard C246 Chipset and LGA1151 Socket
  • On board Intel UHD-Graphic
  • Max. number of simultaneously useable monitors: 3
  • On board Gigabit Ethernet 2x 10 / 100 / 1000 Mbps
  • On board 7.1 Kanal HD Audio
  • 6 x PCI Express Slots; used for:
    - 1x PCI-Express x16 with SAS-RAID-Controller
    - 1x PCI-Express x16 empty
    - 4x PCI-Express x1 empty
  • 1x PCI empty
  • 32GB DDR4-RAM
  • 1x Drive mounting frame 5,25",for up to 4x SAS 2,5" HDD/SSD
  • 1x 1600GB SAS SSD
  • 1x M.2 (2242/2260/2280) M-Key, supports Intel RST, PCI-ex4 mode SSD
  • 1x M.2 (2230) A-Key, supports WiFi module
  • 8x USB 3.0 (housing backside)
  • 1x USB 2.0 (housing inside / dongle)
  • 2x USB 2.0 (housing front)
  • 1x VGA, 1x HDMI, 1x DP
  • USB keyboard, USB optical mouse
  • Operating System: Windows 10 IoT Enterprise LTSC-2019
  • Dimension: (HxWxD) 180mm x 430mm x 500mm
    - (Total rack depth with holder: 500mm + 40mm)
    - (Total width: front panel 430mm + 55mm)

Upgrade to RAID1-System

Extension Kit for RAID1 functionality, SSD-PC only - Upgrade Kit

Technical Data:

  • 1x SSD 1600GB SAS
  • 1x Redundant Power Supply 2x500W
    for input voltage 90-264 VAC; 90-121 VDC; 198-242 VDC

ibaOut-State

Monitoring Board: Temperature and Power Supply
Relais Output - PC Status - Accessory:
The card is used to monitor temperature and power supply for an iba computer Technical Data:

  • Manufacturer: iba AG
  • Monitoring module
  • Temperatur supervision:
    + Status indication: LED
    + Fault-Output: Relay contact
  • Power supply supervision:
    + Status indication: LED
    + Fault-Output: Relay contact
