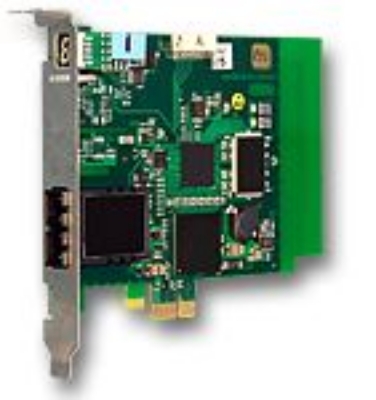

ibaFOB-TDCexp

Process coupling: Fiber optic board (HarmonizedCode:84733020, ECCN:N, LKZ:DE, AG:N)
Tillverkare: iba-ag
Artikelnr: 11.112601

Bidirectional 640Mbit/s GDM access, PCIe - Communication module for a connection to SIMATIC TDC via a GDM rack (Global Data Memory)(Duplex FO; 640 Mbit/s)

Technical Specifications:

  • Manufacturer: iba AG
  • Interface to a SIMATIC TDC GDM rack (Global Data Memory)
  • Fastest sample rate 1ms (depends on the processor load of the used SIMATIC TDC CPU's)
  • PCI-Express card, DMA
  • Usable for PCIe-X1, -X4, -X8, -X16 slots
  • 640Mbps dual port RAM image transfer
  • Fiber optic duplex SC-SC (62.5um) to 400m (without repeater)
  • Max. 4 FOB-TDC cards in a data acquisition computer usable

    Operation modes:
  • SD-TDC-Lite:
    16 receive channels, each with 32 analog and 32 digital signals
  • Request-TDC:
    + Compatibility mode:
    With existing SER04A/B functionblocks (Agents)
    + Extended mode:
    With new SER05A/B functionblocks (Agents)

    Communication channels:
  • Data Request Channel:
    Request for measurement data
  • Acknowledge Channel:
    Ready for measurement; data valid
  • Data Receive Channel:
    Receive of measurement data
    (one channel in compatibility mode)
    (five channels in extended mode)

    Diagnosis features:
  • Fully automatic recognition of the coupling partners and SIMATIC TDC CPU's
  • Comfortable diagnosis with configuration display

Special Remarks:

  • In combination with the Add-on license ibaPDA-Request-TDC, data access to max. 50 processors per FOB-TDC card can be done by using symbolic address information
  • Attention:
    Please make sure that the ID's for CPU, PC and Subrack are unique if more than one FOB-TDC card is connected to a GDM rack!

Status:available
