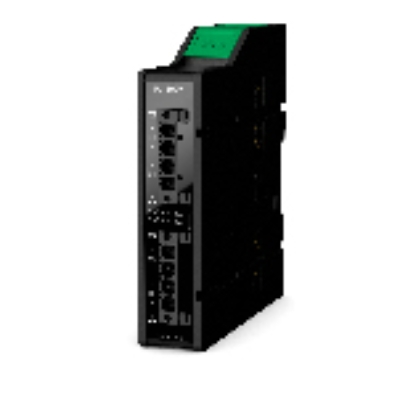

ibaM-4AI-UI

I/O modul - Analog input module, 4 channels; voltages (U) up to 60 V DC; currents (I) up to 20 mA DC; switchable by channel

Technical Data:

• Manufacturer: iba AG
• Analog module; 24Bit
• Power supply: 24V DC, internal via module-to-module connection
• 4 analog inputs
• Galvanically isolated; single ended
• 3 pins per channel: Voltage (U) / GND (U/I) / Current (I)
• Signal input ranges:
  Voltage (U): ±2,5 V / ±10 V / ±24 V / ±60 V
  Current (I): ±20 mA / 0…20 mA DC / 4…20 mA DC
• Sample time: min. 10 µs, freely adjustable
• Integrated filter functionality
• CAT Classification (U): CAT III 100V

Remarks:

• This is a class A product. In a domestic environment this product may cause radio interferences in which case the user may be required to take adequate measures.
