ibaPADU-D-8AI-U

Process coupling: Analog and digital inputs (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Tillverkare: iba-ag
Artikelnr: 10.100100

8A+8D inputs,+/-2.5 V .. +/-60 V,16Bit ADCs, max. 40kHz - Parallel Analog Digital Unit 8 analog and 8 digital channels

Technical Specifications:

  • Manufacturer: iba AG
  • Input module with 8 digital and 8 analog voltage inputs
  • Rugged metal case (DIN rail construction)
  • Dimension (WxHxD): 2.1 in x 7.9 in x 5.6 in (53 mm x 200 mm x 141 mm)
  • Fiber optic connectors with ibaNet protocol 32MBit flex and bi-directional FO connection.
  • 15 devices in a 32MBit flex ring together with a Flex-master (ibaFOB-D card) are possible
  • Power supply: 24V DC
  • Power consumption: max. 10W
    ------
    8 Analog inputs:
  • Design: Galvanically isolated, single ended, separate ADC per channel
  • Resolution: 16 Bit
  • Filters:
    - R/C low-pass 40 kHz (permanent)
    - Analog Antialiasing Butterworth 2nd with 20kHz and a Digital Antialiasing Filter, corner frequency 1/3 of the selected sample rate, can be switched on in addition but only together
  • Input level:
    - ±2.5 V ; - ±10 V ; - ±24 V ; - ±60 V
    (max. for all ranges: ±60 V)
  • Input impedance:
    - 100kOhm
    - 1 MOhm (high impedance; selectable in I/O manager of ibaPDA)
  • Sample rate: max. 40 kHz, free selectable
  • Frequency range: 0 Hz to 20 kHz
  • Accuracy: < 0.1 % of total measuring range
  • Electrical isolation AC 1.5kV
  • 16-pin clamp-type terminal included in delivery
    ------
    8 Digital inputs:
  • Design: Galvanically isolated, protected against reverse polarity, single ended
  • Input level:
    - ±24 V, max. ±60 V
  • Signal level:
    - Signal level log. 0 : > -6 V; < +6 V
    - Signal level log. 1 : < -10 V; > +10 V
  • Input current: 1mA, constant
  • 16-pin clamp-type terminal included in delivery

Special Remark:

  • Fiber optic link to any iba component that supports 32 bit flex technology is possible, but a Flex-master (i.e. ibaFOB-D card with bi- directional FO connection) is required.
  • No longer supports connection to PCMCIA-F card with a RJ11 jack

Status:available



Kunder som köpte denna köpte också

FO/p1-2 Patch Cable 2m

50.101020
Fiber optic cables (ST jacks) (HarmonizedCode:85447000, ECCN:N, LKZ:CZ, AG:N)

FO/p1-20 Patch Cable 20m

50.101200
Fiber optic cable (ST jacks) (HarmonizedCode:85447000, ECCN:N, LKZ:CN, AG:N)

FO/p1-50 Patch Cable 50m

50.101500
Fiber optic cable (ST jacks) (HarmonizedCode:85447000, ECCN:N, LKZ:CN, AG:N)

FO/p1-5 Patch Cable 5m

50.101050
Fiber optic cable (ST jacks) (HarmonizedCode:85447000, ECCN:N, LKZ:CZ, AG:N)

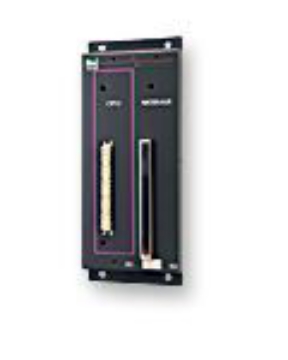

ibaPADU-S-B1S
