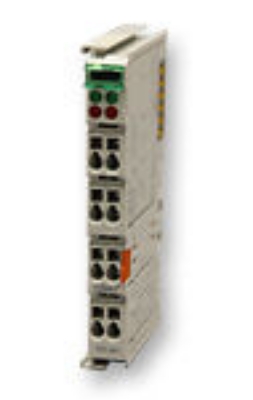

ibaNet750-495/3-Ph-1A

Power coupling: Module for ibaNet 750 (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Manufacturer: iba-ag
SKU: 15.144950

3-Phase Power Measurement Module; AC 690 V 1 A - 3-Phase Power Measurement Module (1A)

Technical data:

  • The 750-495 3-Phase Power Measurement Module measures the electrical data in a 3-phase supply network.
    The voltage is measured via network connection to L1, L2, L3 and N.
    The current of the three phases is fed to IL1, IL2, IL3 and IN (two clamping points each +,- ) via current transformers or via Rogowski coils for the 750-495/000-002 module.
  • DIN rail mount
  • 6 input (3 voltage inputs, 4 differential current inputs)
  • Measuring voltage (max.) 690 V AC 3~
  • Measuring current max. 1 A
  • Power supply via system bus
  • More details on WAGO data sheet

Special Remark:

  • Warranty period extended to 5 years

on request
