Starter Kit - Troubleshooting with camera

Need an easy way to troubleshoot with camera on your machine?

Easy to install, easy to configure, easy to analyze.
Connect several common PLC-systems to your PC via ethernet.

Need more in the future? Don't worry, you can upgrade to a full-feature ibaPDA or add on more camera-licenses whenever you like!
Tillverkare: iba-ag
Artikelnr: BA-1020
Leveransdatum: 2-3 veckor
*

How many frames per second do you need?

Standard camera calculation: n:o of cameras x 25fps

*

How many cameras for recording do you need?

The recording camera is also for live-view.

Combine with a IP-camera.

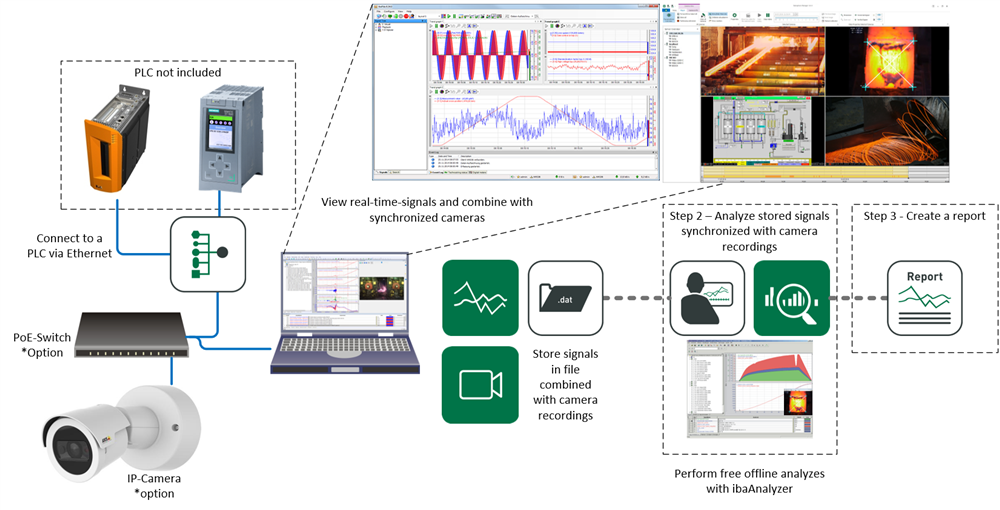

This starter kit for troubleshooting is a combination of the softwares ibaPDA for signal logging and ibaCapture for recording cameras synchronized with signals.

Choose either the fixed bullet-camera or the Pan-Tilt-Zoom camera with magnets for temporary mounting. (no PoE included)

Optional PoE LAN-switch with 20m patch cable to the camera.



Overview

Starter Kit - Troubleshooting with camera



ibaCapture at a glance

  • Synchronous recording of video images and measurement data with ibaPDA
  • Continuous and event-triggered recording
  • Integration of HMI images and images from ibaVision as virtual cameras
  • Protected storage areas for important sequences
  • Capturing from of up to 64 cameras (analog, IP, GigE or virtual) and online visualization
  • View and analyze video sequences and measurement data with ibaAnalyzer
  • Live image display as replacement for a CCTV system
  • Event-triggered switching of display-layouts (Scenario Player)



A summary of product details listed below.
Detailed product description on each individual product:



Is this starter kit not enough? Please look at our full-feature ibaPDA, or contact us and we will help you out!
