ibaFOB-2i-Dexp

Process coupling: fiber optic board (HarmonizedCode:84733020, ECCN:N, LKZ:DE, AG:N)
Tillverkare: iba-ag
Artikelnr: 11.118030

2x fiber optic inputs, DMA functionality, PCI-Express card - Fiber Optical Board (Simplex) with 2 input links

Technical data:

  • Manufacturer: iba AG
  • PCI-Express fiber optic card with DMA functionality
    Compatible to the protocols used by former FOB-cards with
    2 / 3.3 / 5 / 32 Mbit/s data transmission rate
  • Automatic detection for asynchronous / synchronous mode
  • PCI-Express card, DMA
  • Usable for PCIe-X1, -X4, -X8, -X16 slots
  • 2x unidirectional optical link inputs
  • 62,5/125µm fiber optic wires with ST jacks
  • max. length of optical fiber of 2000m between devices

Special Remarks:

  • Can be expanded with an ibaFOB-4o-D (..-PCI)
    - To an active output system with 2 FO output channels and
    - >To an output system for to mirror the 2 input links to 2 additional FO outputs
  • Supported only from ibaPDA-V6, ibaQDR-V6 and ibaLogic from V4 onwards

Status:available



Kunder som köpte denna köpte också

ibaPADU-D-8AI-U

10.100100
Process coupling: Analog and digital inputs (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)

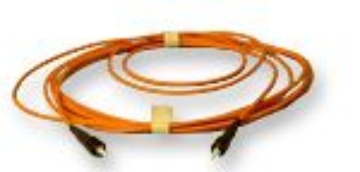

FO/p1-2 Patch Cable 2m
