OQSx-G2 HAZ

OQSX-G2 Sensor TAN DELTA OljediagnostikOQSX-G2 Sensor TAN DELTA Oljediagnostik



OQSx-G2 HAZ

Zone 2 certified to ATEX, IECEx, UKEX, and Class 1 Division 2 US/C standards allowing real time oil condition analysis for hazardous area industrial and commercial applications.

OQSx-G2 HAZ is a high-performance real-time oil condition analysis sensor for use in most explosion hazardous areas.

It delivers the ultimate high-quality real-time oil condition analysis. This enables multiple tangible operating benefits that include reduced maintenance costs, improved reliability, reduced oil wastage, and extended equipment life.

Our unique FSH™ core technology analyses oil condition holistically, detecting, measuring, and tracking all and any contamination or wear with 0.01% sensitivity (10ppm) – other sensor systems typically look at specific parameters and ignore others. This unmatched real-time complete oil analysis capability is achieved through continuous analysis of the electro-chemical properties of the oil at a molecular level.

OQSx-G2 HAZ works with any oil type with any equipment operating in any application. It is certified ATEX Zone 2/intrinsically safe/ Class 1 Div 2

Highlights

  • REAL TIME ANALYSIS -  Continuous real-time oil condition with 0.01% sensitivity, detecting and reporting changes caused by wear and/or contamination
  • RELIABLE ACCURACY – Our unique molecular level analysis technology means that the smallest changes down to 100ppm are detected and reported in real-time. This enables us to reliably track oil wear and immediately detect contamination or equipment issues at the earliest stage
  • ANY OIL TYPE AND EQUIPMENT -  Can be fitted and used on any equipment type operating in any environment using any oil type – mineral or synthetic
  • REDUCE MAINTENANCE COSTS - Analysis-based rate of change and EoL enables accurate trend analysis to identify optimal extended maintenance intervals based on real equipment status. Typically reduces maintenance by up to 50%
  • REDUCED DOWNTIME –  Unseen equipment issues cause subtle changes to oil condition, which are detected and alerted, enabling pre-emptive maintenance before failure or major damage or accelerated wear
  • ENVIRONMENTAL (ESG) TARGETS - Safely maximise oil life to reduce consumption by up to 50%. Reduce parts consumption and extend equipment life

Included

  • 1 x OQSx-G2 HAZ Sensor
  • 1 x OQSx-G2 HAZ Sensor Quick Start Guide
  • 1 x USB Stick
Sortera på
Visa per sida

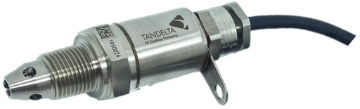

OQSx-G2-HAZ Oil Quality Sensor (1/2” BSPP)

OQSx-G2-HAZ-BS1
Zone 2 certified to ATEX, IECEx, UKEX & Class 1 Division 2 US/C allowing real-time oil condition analysis for hazardous area applications.

OQSx-G2-HAZ Oil Quality Sensor (1/2” NPT)

OQSx-G2-HAZ-NP1
Zone 2 certified to ATEX, IECEx, UKEX & Class 1 Division 2 US/C allowing real-time oil condition analysis for hazardous area applications.

OQSx-G2-HAZ Oil Quality Sensor (7/8” UNF)

OQSx-G2-HAZ-UN1
Zone 2 certified to ATEX, IECEx, UKEX & Class 1 Division 2 US/C allowing real-time oil condition analysis for hazardous area applications.

OQSx-G2-HAZ Oil Quality Sensor (M18)

OQSx-G2-HAZ-M18
Zone 2 certified to ATEX, IECEx, UKEX & Class 1 Division 2 US/C allowing real-time oil condition analysis for hazardous area applications.
